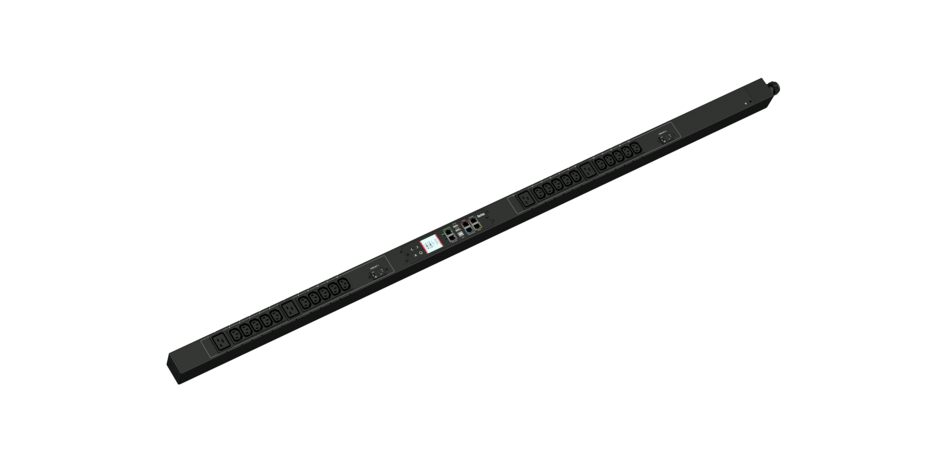

Raritan Smart Power Distribution Unit | 1 Phase, 230Vac 32A | 24 Outlets: 20 X IEC-C13, 4 X IEC-C19 | Plug: IEC60309 32A, 7.36Kva | Zero U Vertical PDU | Ethernet, Serial, USB-A, USB-B | Sensor Connections with Securelock

Raritan PX2-1493 : 230V, 1Φ, 7.4kVA, 32A

Features
• Securelock
• Removable Controller
• Energy Metering
• Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
• Metering Accuracy
• ISO/IEC 62053-21 1%
• Metering per input line
• Metering per Branch Circuit Breaker
• Environmental Sensor Ready
• Compatible Sensors: Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
• Cascading : Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
• Networking: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
• Onboard Display: Colour, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation

Specifications

Input
• Input Plug: IEC 60309 2P+E 6h 32A (2P3W)
• Nominal Voltage : 230V
• Maximum Input Current : 32A
• Rated Input Current : 32A
• Power Capacity : 7.4kVA
• Cord Length : 3m

Output
• Nominal Voltage : 230V
• Receptacles (Output Connections)
(20) x IEC320 C13
(4) x IEC320 C19
• Overload Protection
(2) x LEGBXA6-16

Physical
• Dimensions (WxDxH) : 52mm x 55mm x 1539mm
• Shipping Dimensions : 280mm x 115mm x 1815mm
• Mounting : Tool-less Button Mount
